What does the highest FS power entry mean?
VIM100FS is the 100W model above the 20W, 30W, 50W, 60W and 70W entries. This ordering does not demonstrate the best result or fastest processing for every proposed marking task.
Laser Marking Machine
VIM100FS — VIM-FS Laser Marking Machine
VIM100FS is the 100W split-design fiber laser marking machine at the top of the FS power table, with a listed wavelength of 1080nm. Plan the complete installation boundary: source and control positions, optics, component support, connections and the intended marking task.
The highest power entry does not establish the best choice for every application. Supply the actual artwork, substrate and workpiece layout before comparing offers. A clear requirement connects the equipment selection to the job without turning the catalogue position into a promise of speed or depth.
Technical specifications
| Specification | VIM100FS |
|---|---|
| Laser Power | 100W |
| Laser Wavelength | 1080nm |
| Making Range | 110*110mm, 200*200mm |
| Laser Generator | Raycus, IPG |
| Minimum Line Width | 10 Microns |
| Minimum Characters | 0.15mm |
| Usage Environment | Clean and Dust-Free or Dust-Less |
| Graphic Format Supported | bmp, jpg, gif, png, tif, ai, dxf, dst, plt, etc |
| Laser Module Life | >100000 Hours |
Configuration options vary by model. Confirm the final specification, selected components and operating requirements with your quotation.
Other models in this series

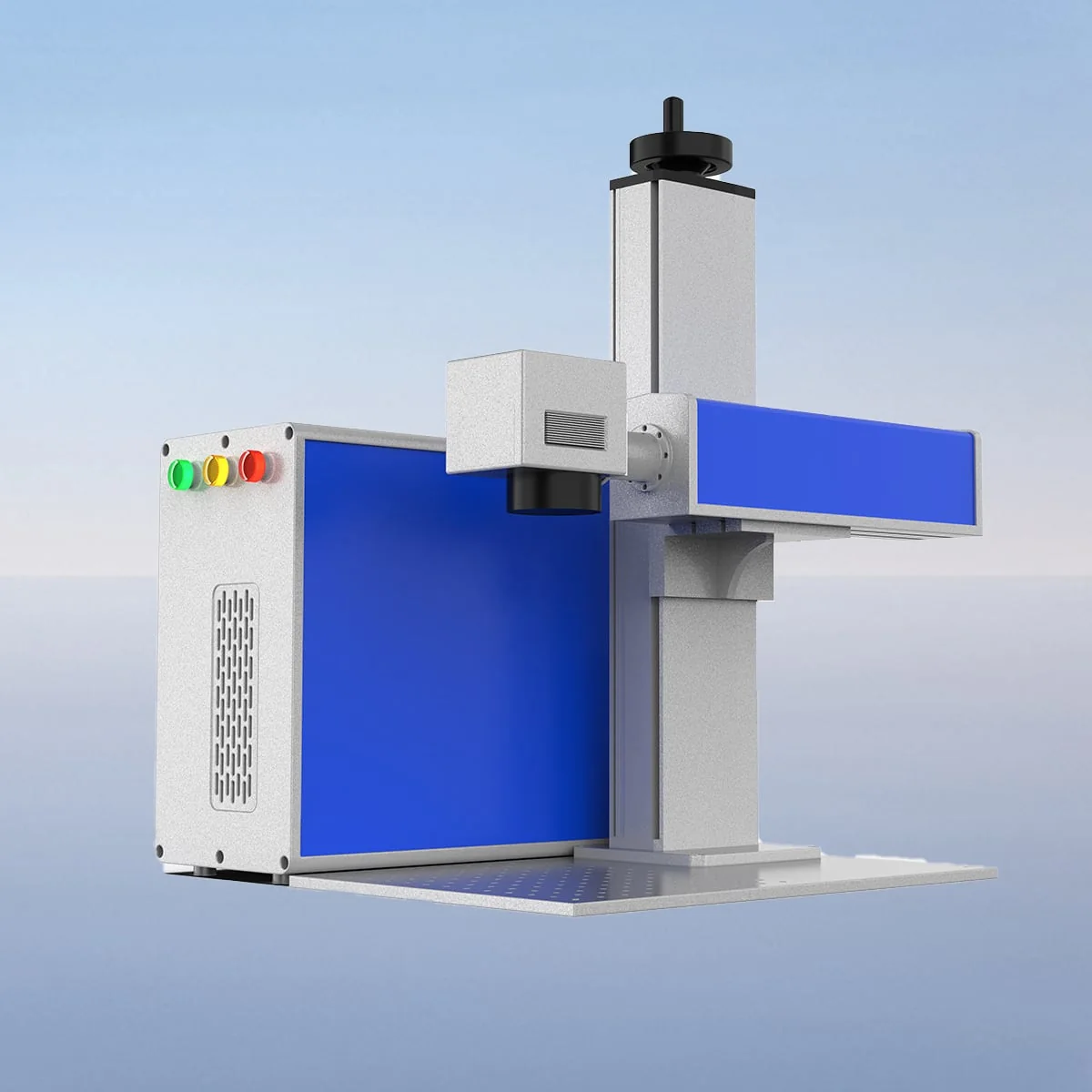

VIM100FS fiber laser marking machine structure
The laser source and control unit are separated in the described FS structure. The configuration names a fiber generator, air cooling, galvo scanner, field lens and red dot pointer. The pointer provides visible positioning assistance, while actual unit dimensions and connection reach need confirmation for the intended layout.
The control system provides adjustment, configuration and monitoring. It does not establish automatic process selection, material recognition or a complete production-line interface. Request any such requirement separately so the quoted scope does not depend on assumptions about the control description.
Minimum Line Width is listed at 10 Microns and Minimum Characters at 0.15mm. These are specification fields rather than a universal performance guarantee. The character dimension does not define text length, and neither value establishes a result for every possible field lens, graphic or substrate.
VIM100FS work preparation
Describe the exact material and surface condition as part of your proposed task. The admitted source does not establish a specific material compatibility list or a completed customer application. Identify the target face and include any coating or treatment that differs from the base material.
Provide the overall component outline, support arrangement and available workspace. The split design does not prove capacity for arbitrary component weight or size. These dimensions and support details are requirements to review against the offered equipment, not machine capabilities confirmed on this page.
VIM100FS 100W laser marker configuration
The table lists Raycus and IPG generator choices and marking ranges of 110*110mm and 200*200mm. Identify the selected generator and lens alongside VIM100FS in the offer. Distinguish optional optics and requested support equipment from the items actually included in the delivery.
Supported graphic formats include bmp, jpg, gif, png, tif, ai, dxf, dst and plt. Send dimensioned artwork with its placement drawing. Ask for the actual equipment dimensions, connections and operating requirements before committing the separated units to fixed positions in the workstation plan.
The specified environment is clean and dust-free or low-dust. The described interlock stops the machine when a safety door or panel opens, without defining every protective measure for the complete installation. Laser Module Life is published as >100000 Hours; it is not a whole-machine warranty, maintenance promise or guarantee of production availability.
Product questions
Is the life specification a machine warranty?
No. The >100000 Hours value refers to Laser Module Life in the table. Confirm warranty and service conditions separately for the actual source, machine and any accessories included in the offer.
How should field and accessory options be quoted?
Name the selected lens and marking range, then list any alternative optics or support equipment separately. A catalogue choice does not automatically become an included item in every delivered configuration.
What information is needed for the installation layout?
Show the proposed source and control positions, component support and working space. Request the actual dimensions and connection reach so the layout can be reviewed against the offered equipment.
What application details should be supplied?
Provide substrate and surface information, the complete graphic at finished size and its location on the part. Include component dimensions and support details without assuming the split structure proves compatibility or handling capacity.
