Is VIM100FF the highest listed power model?
Yes. The published FF range ends at 100W, with VIM70FF at 70W below it. This is a power ranking, not a claim that every job runs faster or gives a better result.
Laser Marking Machine

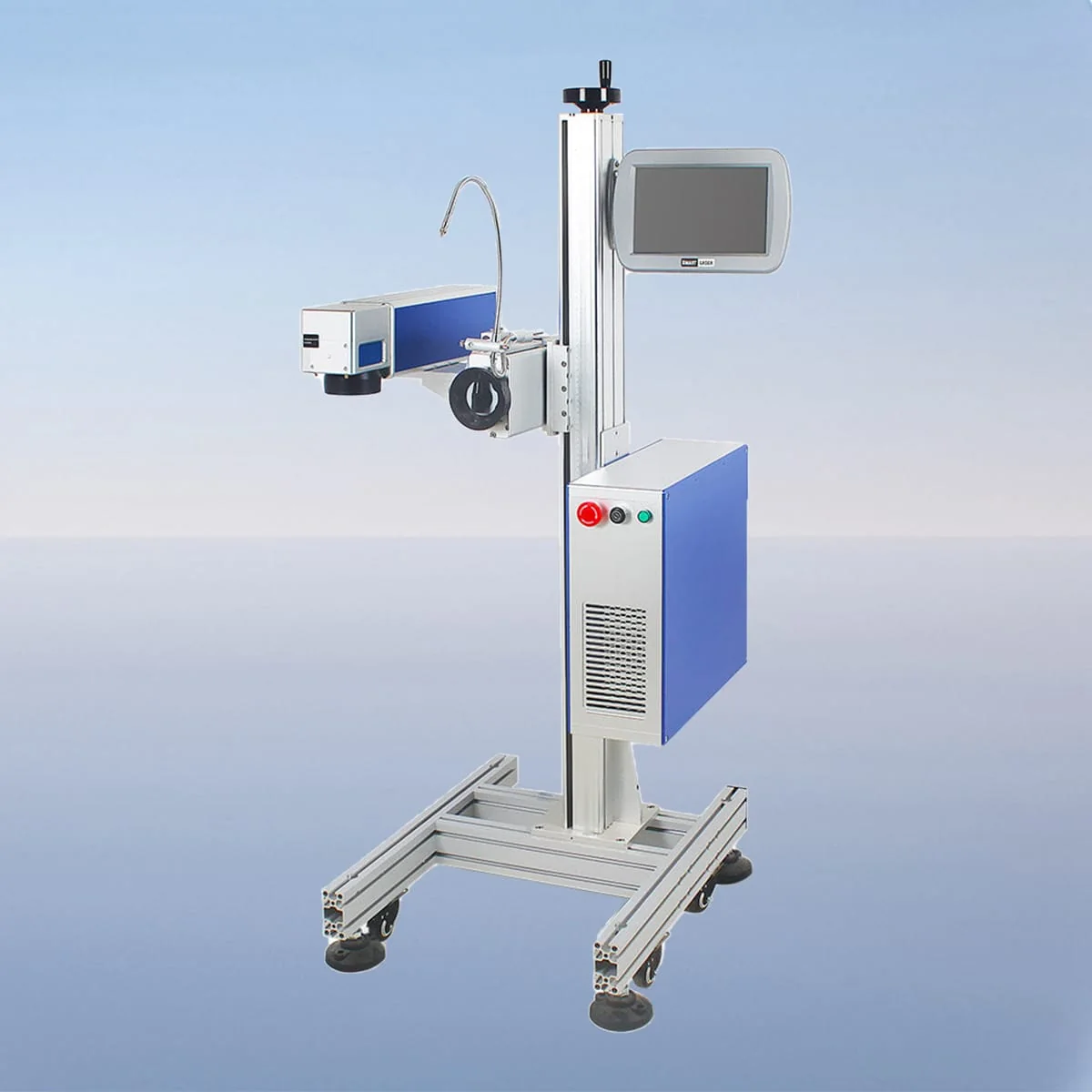

VIM100FF — VIM-FF Laser Marking Machine
VIM100FF is the highest listed power model in the VIM-FF flying fiber laser marking family, at 100W and a wavelength of 1080nm. VIM70FF is the next lower entry at 70W. The source describes the FF arrangement for continuous marking of moving materials.
For a line project, keep the single marking machine distinct from the surrounding production requirements. A purchasing brief should show what handling equipment already exists, what additional supply is requested and where the mark belongs. The 100W entry identifies a power choice; it does not turn the equipment description into a complete line package.
Technical specifications
| Specification | VIM100FF |
|---|---|
| Laser Power | 100W |
| Laser Wavelength | 1080nm |
| Laser Generator | Raycus, IPG |
| Minimum Line Width | 10 Microns |
| Minimum Characters | 0.15mm |
| Usage Environment | Clean and Dust-Free or Dust-Less |
| Graphic Format Supported | bmp, jpg, gif, png, tif, ai, dxf, dst, plt, etc |
| Laser Module Life | >100000 Hours |
Configuration options vary by model. Confirm the final specification, selected components and operating requirements with your quotation.
Other models in this series
VIM100FF fiber laser marking machine structure
The published arrangement includes a fiber laser generator, air cooling, a galvo scanner and a field lens. Raycus and IPG are listed generator choices. The actual source and optical setup should be identified together in the proposal, especially when comparing the 100W model with a lower power alternative.
Laser power, speed and marking parameters are adjustable through the described controls. No numerical product-movement speed or universal control interface is provided here. A requested connection to existing line equipment therefore needs to be stated in the proposed scope rather than inferred from the word flying.
The red dot pointer provides visible positioning assistance. The table gives a 10 Microns minimum line width and a 0.15mm minimum character dimension. These facts do not establish automatic product tracking, positioning accuracy or a guarantee that every mark will remain readable under an unspecified line condition.
VIM100FF work preparation
Moving products and production lines are the original application setting. Provide the actual material, finish and graphic requirements for VIM100FF. No specific material compatibility list or completed customer trial is assigned on this page, and the highest listed power does not establish suitability for every surface.
Show the proposed marking point in a line layout, with product direction, orientation and access constraints. Identify upstream and downstream equipment that affects the available space. This prepares a concrete equipment discussion without claiming that the marker supplies a conveyor, manages the surrounding process or makes the entire line unattended.
VIM100FF 100W laser marker configuration
The FF source table gives no marking-range dimension. Request the selected field lens and working area using the intended artwork and placement drawing. A value from another marking series should not be assigned to VIM100FF merely because it also has a 100W model.
The supported-format list includes bmp, jpg, gif, png, tif, ai, dxf, dst and plt. Attach the correct file version and finished dimensions to the brief. Separate supports, handling devices, data connections and installation requirements into identifiable scope items so the proposed machine package is clear.
The stated environment is clean and dust-free or low-dust. The configuration describes an interlock that stops the machine when a safety door or panel opens; it does not establish whole-line certification. The table's >100000 Hours module-life field is likewise a source specification, without defining whole-machine warranty coverage or measured production availability.
Product questions
Does the offer automatically include an entire line?
The source describes a flying marking machine. Conveyors, supports, interfaces and other equipment must be identified in the actual supply scope rather than assumed from the application description.
What maximum line speed is specified?
No numerical maximum line speed is assigned here. Provide the required product movement and graphic details so the proposed configuration can be discussed against the actual task.
How should the optical field be selected?
Request the actual lens and working range for the artwork dimensions and mark location. The FF table supplies no numerical range, so a value from a different series should not be reused.
Does >100000 Hours guarantee the life of the line?
No. It is the source Laser Module Life field. It does not establish the lifespan, availability or warranty coverage of the assembled marker or the surrounding production line.
